Tables

A typical application feature is to display a table of entities from a server-side data source (e.g., a database). For example, the admin Sprinkle generates client-side tables for admins to view and manage users, groups, roles, activities, and permissions:

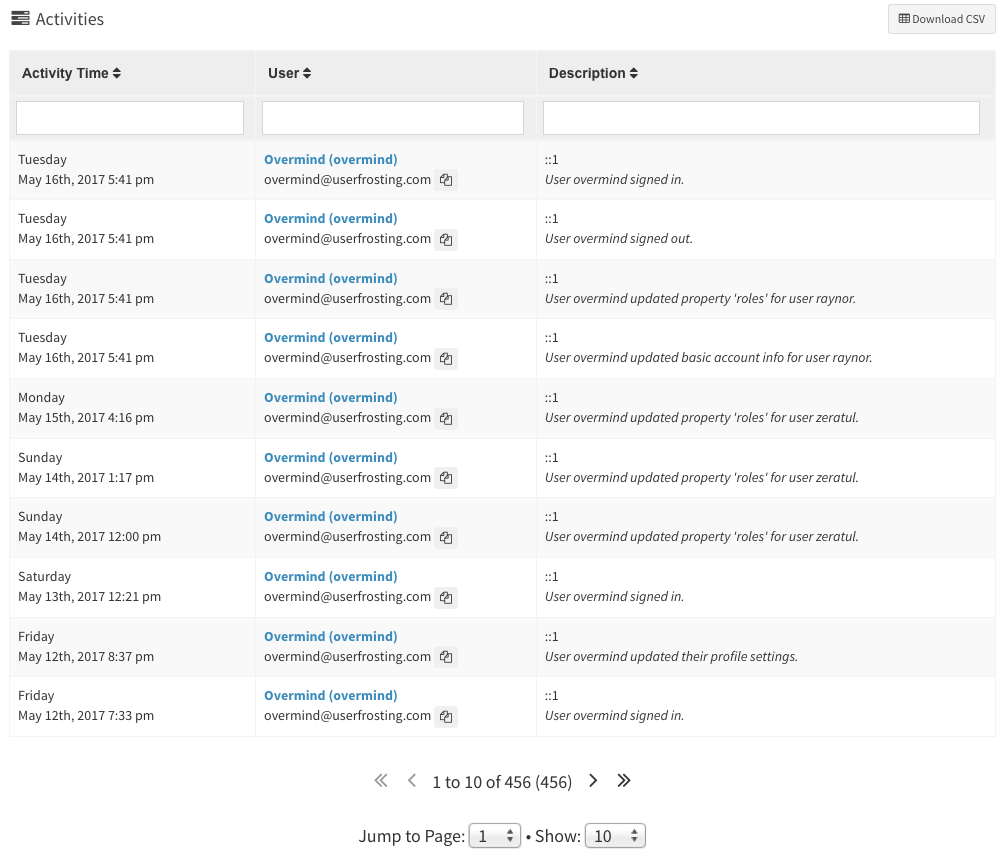

Viewing a table of user activities

ufTable provides a convenient way to generate sortable, searchable, paginated tables of data from an AJAX source using Mottie's tablesorter jQuery plugin.

Usage

A typical use case is to create a "skeleton" <table> in your Twig template, and then use ufTable to dynamically retrieve data from a JSON data source and construct the rows. As the user sorts columns, inputs filter queries, and pages through the data, ufTable will submit new AJAX requests to the server and refresh the <table> with the results of the updated queries.

For example, consider the Users table. First, we create a partial template that extends the base components/tables/table-paginated.html.twig template (we can include this partial template in a page template using the include tag later):

components/tables/users-custom.html.twig:

{% extends "components/tables/table-paginated.html.twig" %}

{% block table %}
    <table id="{{table.id}}" class="tablesorter table table-bordered table-hover table-striped" data-sortlist="[[0, 0]]">
        <thead>
            <tr>
                <th class="sorter-metatext" data-column-name="name" data-column-template="#user-table-column-info">User info <i class="fa fa-sort"></i></th>
                <th class="sorter-metanum" data-column-name="last_activity" data-column-template="#user-table-column-last-activity">Last activity <i class="fa fa-sort"></i></th>
            </tr>
        </thead>
        <tbody>
        </tbody>
    </table>
{% endblock %}

Your table skeleton should be defined in the table block as a <table> element. It should have a unique id attribute, and the tablesorter class (ufTable uses this class internally to reference the table). The other classes on <table> are styling classes from Bootstrap and are optional. The data-sortlist attribute is a tablesorter setting that tells tablesorter how to initially sort the table when the page is loaded.

You'll notice that we populated the table with all of its column headers, but an empty tbody element. This empty tbody is where ufTable will automatically render the rows using data from the AJAX source.

Each th element has a data-column-name attribute and a data-column-template attribute.

data-column-name is used to determine the Sprunje filter name to use when the user types a query into the filter box for that column. For example, if we type "userfrost" into the filter box in the "User info" column:

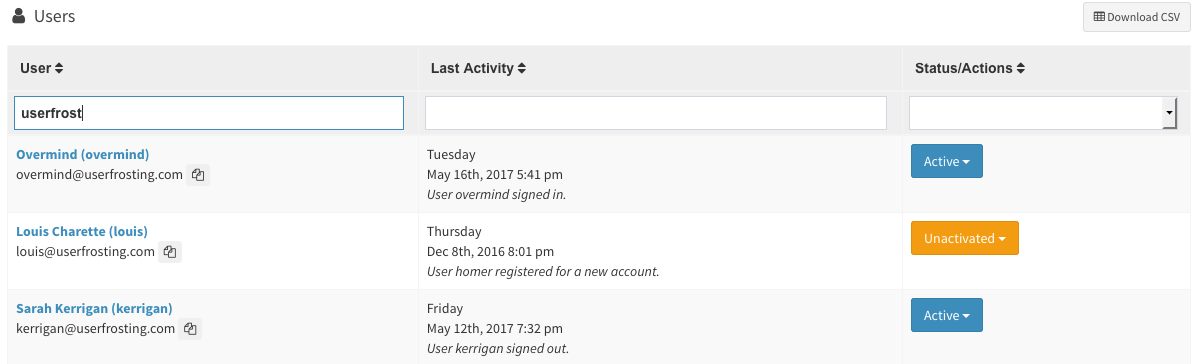

Searching a table

ufTable will add a query parameter filters[name]=userfrost in the next AJAX request it makes. See Chapter 6 for information on setting up a Sprunjed data source in your server-side code.

data-column-template is an identifier used to find the Handlebars template to use when rendering the cells for that particular column. For this example, we will define two Handlebars templates in the table_cell_templates block of our Twig template:

{% block table_cell_templates %}

    {% verbatim %}
    <script id="user-table-column-info" type="text/x-handlebars-template">
        <td data-text="{{row.last_name}}">
            <strong>
                <a href="{{site.uri.public}}/admin/users/u/{{row.user_name}}">{{row.first_name}} {{row.last_name}} ({{row.user_name}})</a>
            </strong>
            {{row.email}}
        </td>
    </script>

    <script id="user-table-column-last-activity" type="text/x-handlebars-template">
        {{#if row.last_activity }}
        <td data-num="{{dateFormat row.last_activity.occurred_at format='x'}}">
            {{dateFormat row.last_activity.occurred_at format="dddd"}}<br>{{dateFormat row.last_activity.occurred_at format="MMM Do, YYYY h:mm a"}}
            <br>
            <i>{{row.last_activity.description}}</i>
        </td>
        {{ else }}
        <td data-num="0">
            <i>Unknown</i>
        </td>
        {{/if }}
    </script>

    ...
    {% endverbatim %}

{% endblock %}

Notice that the ids in these template <script> tags match the data-column-template attributes of your table skeleton.

You'll also notice that we have custom data-* attributes in the <td> tags of each of these templates. These refer to tablesorter's custom sort parsers, which lets us define a custom parameter for tablesorter to use when sorting the table by the corresponding column. We will discuss this more later.

To use your table, simply include your table partial template in your page inside a wrapper <div>:

<div id="myUserTable">
    <button class="btn btn-sm btn-default js-download-table"><i class="fa fa-table"></i> Download CSV</button>
    {% include "components/tables/users-custom.html.twig" %}
</div>

If you create a button with the .js-download-table class in your wrapper as well, it will be automatically bound to trigger an AJAX request for downloading the table in CSV format.

In your page Javascript, initialize ufTable on your wrapper element:

$("#myUserTable").ufTable(options);

Where options is a JSON object containing the configuration options for your table.

Options

dataUrl

The absolute url for the table's AJAX data source. ufTable expects the data source to use the Sprunje API. Thus, it should be able to understand the API for Sprunje requests, and return data in the Sprunje response format:

{
    "count": 2,
    "count_filtered": 2,
    "rows": [
        {
            "id": 11,
            "species": "Bubo scandiacus",
            "description": "Snowy owls are native to Arctic regions in North America and Eurasia. Males are almost all white, while females have more flecks of black plumage. Juvenile snowy owls have black feathers until they turn white. The snowy owl is a ground nester that predominantly hunts rodents."
        },
        {
            "id": 8,
            "species": "Megascops asio",
            "description": "This species is native to most wooded environments of its distribution and, more so than any other owl in its range, has adapted well to manmade development, although it frequently avoids detection due to its strictly nocturnal habits."
        }
    ]
}

msgTarget

If ufTable receives an error from the server when it attempts to retrieve row data, it will automatically retrieve any error messages from the alert stream and render them on the page. msgTarget allows you to specify an element of the DOM where ufTable should display these messages.

Internally, ufTable will set up a ufAlerts widget to fetch and render the alert stream messages.

If msgTarget is not specified, ufTable will look for an element on the page with an id of #alerts-page by default.

tablesorter

An object containing tablesorter's configuration options. The default values for this object are:

{
    debug: false,
    theme     : 'bootstrap',
    widthFixed: true,
    // Set up pagination of data via an AJAX source
    // See http://jsfiddle.net/Mottie/uwZc2/
    // Also see https://mottie.github.io/tablesorter/docs/example-pager-ajax.html
    widgets: ['saveSort','sort2Hash','filter'],
    widgetOptions : {
        filter_cssFilter: 'form-control',
        filter_saveFilters : true,
        filter_serversideFiltering : true,
        filter_selectSource: {
            ".filter-metaselect": base._buildFilterSelect
        },
        // hash prefix
        sort2Hash_hash              : '#',
        // don't '#' or '=' here
        sort2Hash_separator         : '|',
        // this option > table ID > table index on page
        sort2Hash_tableId           : null,
        // if true, show header cell text instead of a zero-based column index
        sort2Hash_headerTextAttr    : 'data-column-name',
        sort2Hash_encodeHash : base._encodeHash,
        sort2Hash_decodeHash : base._decodeHash,
        sort2Hash_cleanHash : base._cleanHash,
        // direction text shown in the URL e.g. [ 'asc', 'desc' ]
        sort2Hash_directionText     : [ 'asc', 'desc' ]
        // if true, override saveSort widget sort, if used & stored sort is available
        sort2Hash_overrideSaveSort  : true
    }
}

pager

An object containing tablesorter's paging widget options. The default values for this object are:

{
    // target the pager markup - see the HTML block below
    container: this.$T.find(".tablesorter-pager"),

    // Must be initialized with a 'data' key
    ajaxObject: {
        data: {}
    },

    // Saves the current pager page size and number (requires storage widget)
    savePages: true,

    output: '{startRow} to {endRow} of {filteredRows} ({totalRows})',

    // apply disabled classname (cssDisabled option) to the pager arrows when the rows
    // are at either extreme is visible; default is true
    updateArrows: true,

    // starting page of the pager (zero based index)
    page: 0,

    // Number of visible rows - default is 10
    size: 10,

    // Reset pager to this page after filtering; set to desired page number (zero-based index),
    // or false to not change page at filter start
    pageReset: 0,

    // if true, the table will remain the same height no matter how many records are displayed.
    // The space is made up by an empty table row set to a height to compensate; default is false
    fixedHeight: false,

    // remove rows from the table to speed up the sort of large tables.
    // setting this to false, only hides the non-visible rows; needed if you plan to
    // add/remove rows with the pager enabled.
    removeRows: false,

    // If true, child rows will be counted towards the pager set size
    countChildRows: false,

    // css class names of pager arrows
    cssNext        : '.next',  // next page arrow
    cssPrev        : '.prev',  // previous page arrow
    cssFirst       : '.first', // go to first page arrow
    cssLast        : '.last',  // go to last page arrow
    cssGoto        : '.gotoPage', // page select dropdown - select dropdown that set the "page" option

    cssPageDisplay : '.pagedisplay', // location of where the "output" is displayed
    cssPageSize    : '.pagesize', // page size selector - select dropdown that sets the "size" option

    // class added to arrows when at the extremes; see the "updateArrows" option
    // (i.e. prev/first arrows are "disabled" when on the first page)
    cssDisabled    : 'disabled', // Note there is no period "." in front of this class name
    cssErrorRow    : 'tablesorter-errorRow' // error information row
}

addParams

An object containing any additional key-value pairs that you want appended to the AJAX requests made by the table. Useful when implementing, for example, site-wide filters or using data sources that require additional context.

Events

ufTable triggers the following events:

pagerComplete.ufTable

Triggered when the tablesorter pager plugin has completed rendering of the table.

Of course, you can always bind handlers directly to tablesorter's events as well.

Methods

getTableStateVars(table)

Fetches the current page size, page number, sort order, sort field, and column filters.

Customizing the base template for your table

If you don't want to use the default table-paginated.html.twig base template for your tables, you can create your own base template. Your template needs to have three things:

  • {% block table %}: This is the Twig block where the table skeleton will go.
  • {% block table_cell_templates %}: This is the Twig block where cell templates will be placed.
  • A pagination block with the tablesorter-pager class. This should contain controls for navigating your table's pagination.

Your base template might end up looking something like:

{% block table %}
    {# Define your table skeleton in this block in your child template #}
{% endblock %}

{% block table_cell_templates %}
    {# Define your Handlebars cell templates in this block in your child template #}
{% endblock %}

<div class="pager pager-lg tablesorter-pager">
    <span class="pager-control first" title="First page"><i class="fa fa-angle-double-left"></i></span>
    <span class="pager-control prev" title="Previous page"><i class="fa fa-angle-left"></i></span>
    <span class="pagedisplay"></span> {# this can be any element, including an input #}
    <span class="pager-control next" title="Next page"><i class="fa fa-angle-right"></i></span>
    <span class="pager-control last" title= "Last page"><i class="fa fa-angle-double-right"></i></span>
    <br><br>
    {{translate("PAGINATION.GOTO")}}: <select class="gotoPage"></select> &bull; {{translate("PAGINATION.SHOW")}}:
    <select class="pagesize">
    {% for count in pager.take|default([5, 10, 50, 100]) %}
        <option value="{{count}}">{{count}}</option>
    {% endfor %}
    </select>
</div>
